Plots of a 5 elm (6elm 6m) SteppIR.

Thanks to ON4IQ for EZfiles

6m

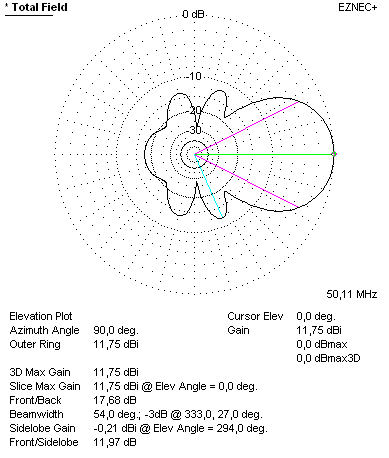

Freespace

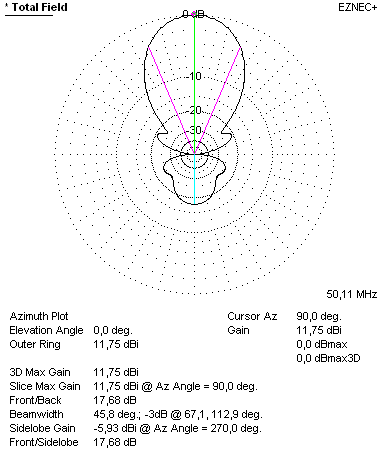

Azimut

Elevation

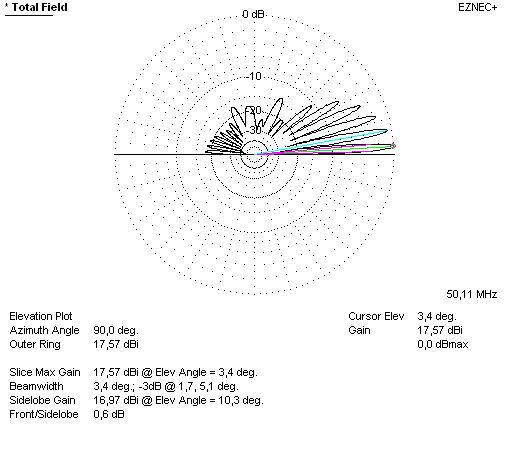

Elevation 25m AGL

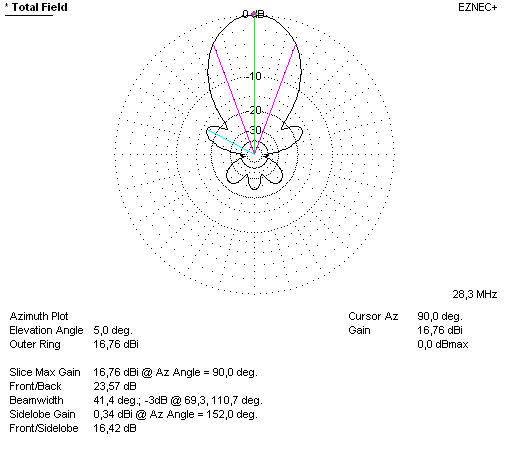

28Mhz 25m AGL.

Azimuth

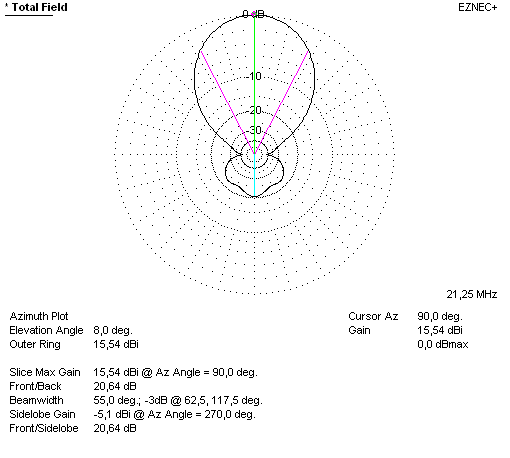

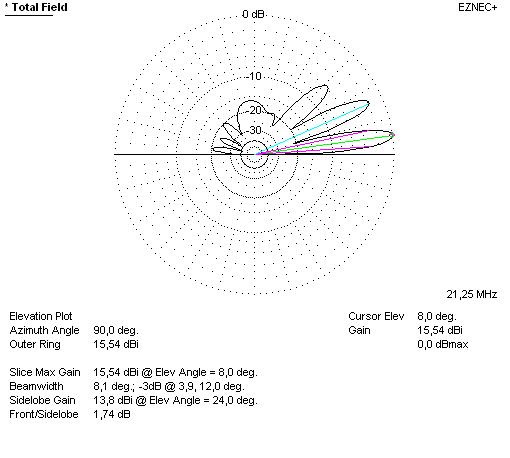

21 Mhz 25M AGL

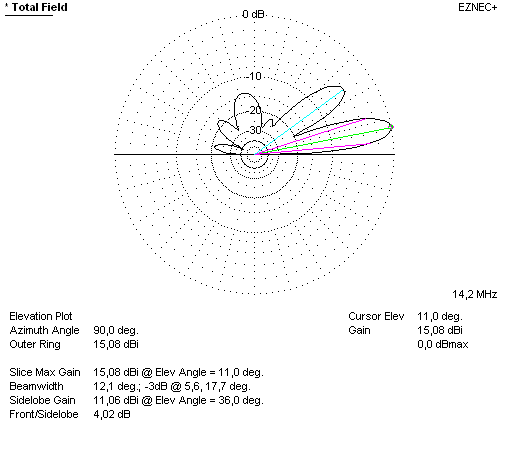

14 Mhz 25m AGL

Azimuth

Elevation
